PVC flexible corrugated pipe making machine
Max line speed 30 meters per minute.
PVC plasticcorrugated pipe machines is made of super quality steel.
The module connection is set in the closed machine cavity. The
inner and outer side of corrugated pipe is even and smooth.
The forced cooling system can enhance the quality and capacity of
product. Corrugated pipes are widely used for wire sleeves, auto,
home and medical appliances.
Technial parameters:
Pipe diameter(mm) | 4.5-9 | 9-32 | 16-50 | |
Extruder model | SJ-30 | SJ-50 | SJ-65 | |
Screw L/D | 30:1 | 30:1 | 30:1 | |
Output kg/h | 10 | 30 | 50 | |
Extruder motor | 4 | 15 | 18.5 | |
Corrugators power kw | 1.1 | 1.5 | 2.2 | |
Moulds pairs | 42 | 38,50 | 50 | |
Cooling mode | Water Cooling and fan cooling | |||
Extruding speed(m/min ) | 6-10 | 8-12 | 8-12 | |
Account number mode | Inducting speed | |||
Winding pipe mode | Automatic winding and manually | |||
Main mahine list
1.SJ-30/50/65 Single Screw Extruder
2.Forming machine
3.Double station winder
4.Vacuum loading device
5.One set mould

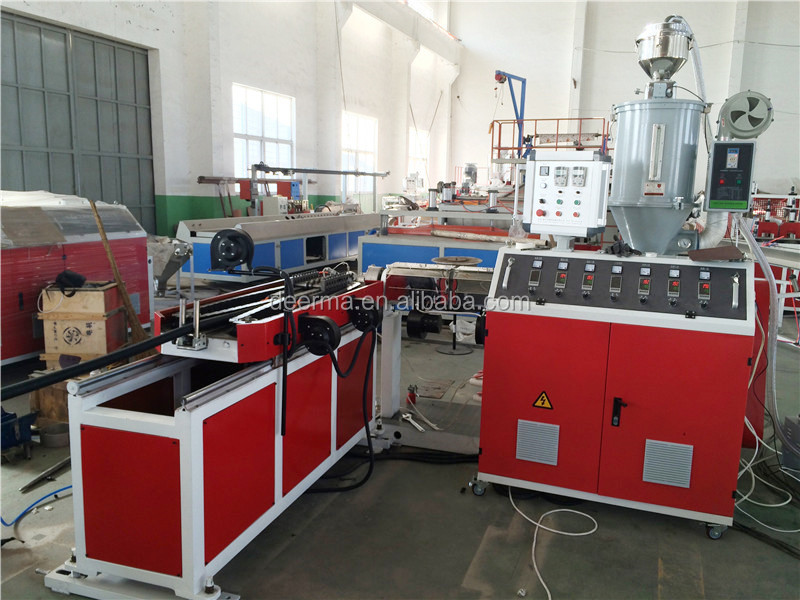

Machine Pictures
Output products:
...
|
|
