    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    Ask Lasest Price
    Supply Ability : 5 Set/Sets per Month PVC hard surface foam sheet making machine
    Price : CN¥901,875.00/sets 1-3 sets
    • Product Details
    • Company Profile

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    High Capacity PVC Hard Surface Foam Sheet Making Machine Featuring 38CrMoALA Screw Material And 28 1 Screw L/D Ratio

    Production Description
    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
    • High efficiency conical twin screw extruder.
    • It can produce rigid pvc wpc crust/skinning foam board machine.
    • The thickness is from 3mm to 45mm, width is from 1220mm to 2050mm.
    • This sheet is mostly used in transportation , advertisement,construction furniture industry ect.

    Production Line

    Main Composition of PVC Hard Surface Foam Sheet Making Machine

    ItemQuantity
    SJSZ80/156 conical twin screw extruderone set
    Electric cabinetone set
    Nose and die moldone set
    Forming machineone set
    Water chillerone set
    Cooling bracketone set
    Tractor machineone set

    Longitudinal cutter

    one set
    Dust vacuuming deviceone set
    Traverse cutterone set
    Automatic dischargeone set
    Other auxiliary tools and partsone set

    1.SJSZ80/156 Conical Twin Screw Extruder

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    2.Electric Cabinet

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    3.Die Mold

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

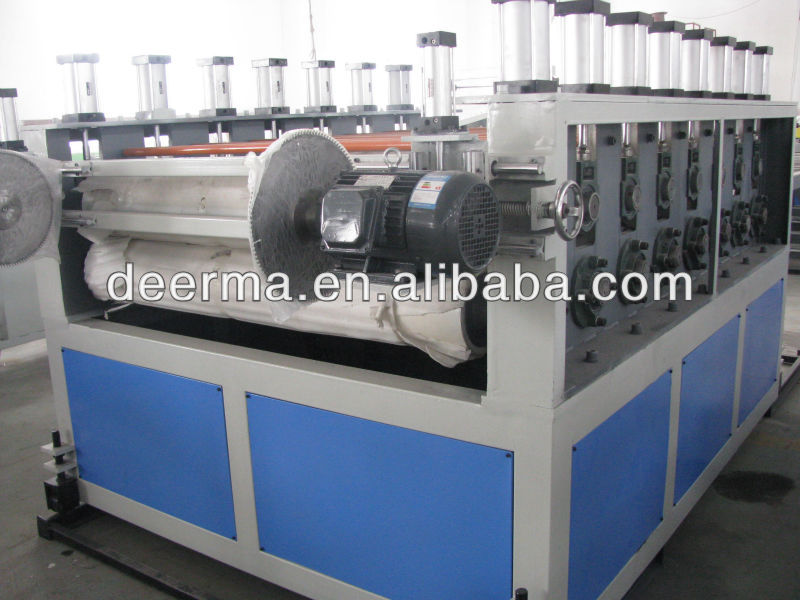

    4.5.Forming machine with water chiller

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

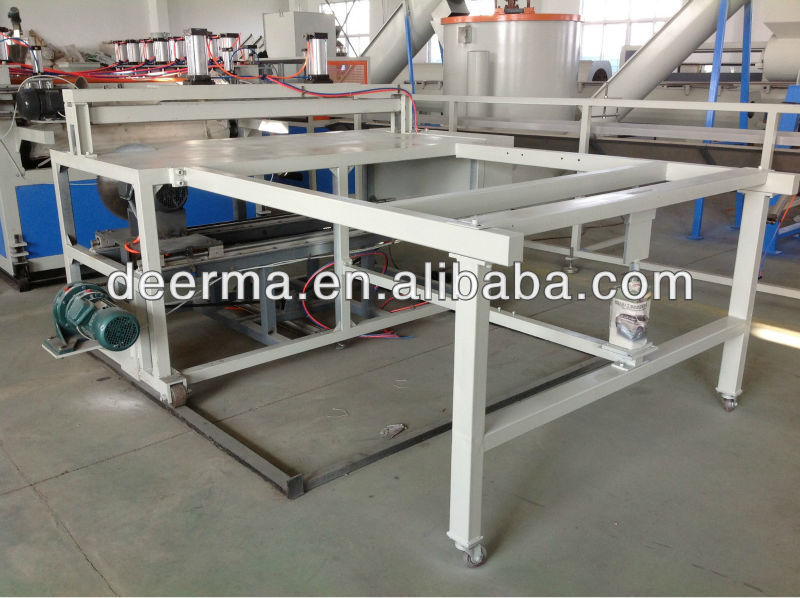

    6.Cooling bracket

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    7.8.Tractor machine with Longitudinal cutter

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    9.Traverse cutter

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    Application
    • These pvc foam board is mostly used in transportation , advertisement, funiture industry and so on.
    • Products characteristics
    • 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc.

    • 2) Color-way is not changed long time and not easy to aging under radiation resistance;

    • 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig It is the same as wood manufacture processing, even better than wood. It is the best substitute to wood, aluminum and composite product.

    • 4) It can be welded as per general welding stipulation and also stick to other PVC materials;

    • 5) Smooth surface and easy to print.

    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

    Certification
    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
    After Services

    1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

    2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

    3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.

    Our Company
    160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
